Description

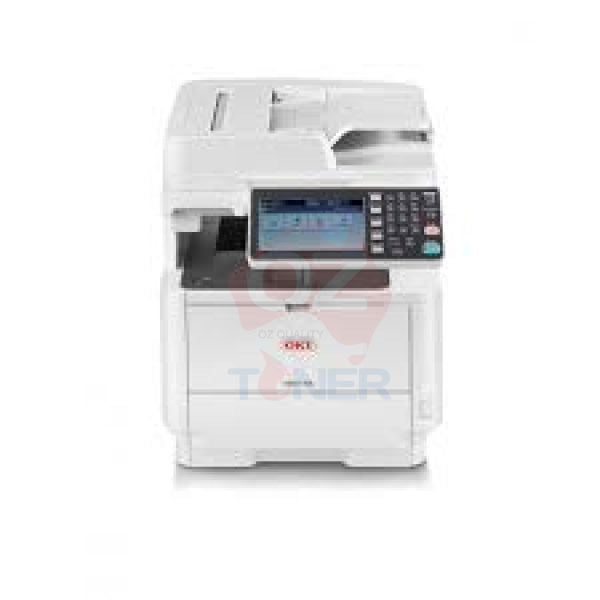

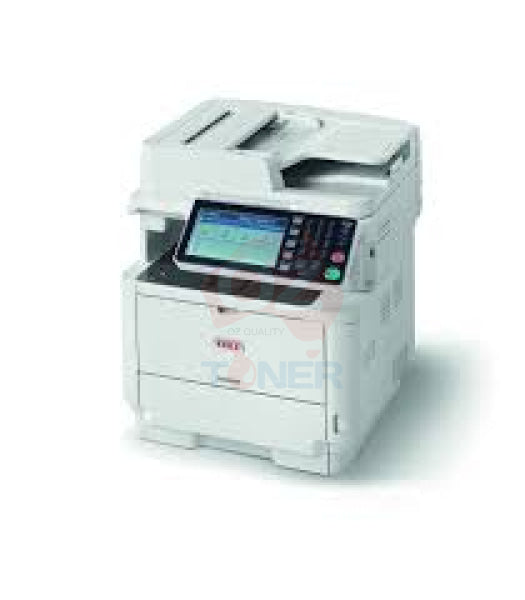

OKI ES5162DNW A4 Mono Laser Multifunction Printer | 45ppm | Wireless | Duplex | Executive Series | 45762143
The OKI ES5162DNW Executive Series is a high-performance A4 monochrome laser multifunction printer designed for medium to large workgroups that require fast printing, advanced scanning capabilities and low running costs. Combining Print, Copy, Scan and Fax functionality into one powerful device, the ES5162DNW delivers outstanding productivity with print speeds of up to 45 pages per minute, automatic duplex printing and scanning, Gigabit Ethernet, Wireless LAN and a large intuitive 7-inch colour touchscreen.
Built on OKI's renowned Digital LED technology, the ES5162DNW offers exceptional print quality, excellent reliability and support for high-volume business environments. Its generous paper capacity, high-yield toner options and advanced workflow features make it the ideal solution for offices seeking maximum efficiency and a low total cost of ownership.
Key Features
- ✔ Print, Copy, Scan & Fax (4-in-1)
- ✔ Fast A4 printing up to 45 pages per minute
- ✔ Automatic duplex printing, copying, scanning and faxing
- ✔ 50-sheet Reverse Automatic Document Feeder (RADF)
- ✔ Large 7" colour touchscreen display
- ✔ Wireless LAN & Gigabit Ethernet networking
- ✔ USB 2.0 connectivity
- ✔ 530-sheet paper cassette + 100-sheet multipurpose tray
- ✔ Expandable paper capacity up to 1,160 sheets
- ✔ High-yield toner options for lower running costs
- ✔ BONUS: 3-Year On-Site Warranty*
Ideal For
- Medium & Large Offices
- Corporate Workgroups
- Schools & Universities
- Government Departments
- Medical Clinics
- Legal & Accounting Firms
- Warehouses & Logistics
- Professional Service Businesses
Product Specifications
| Manufacturer | OKI |
| Series | Executive Series |
| Model | ES5162DNW MFP |
| Part Number | 45762143 |
| Functions | Print, Copy, Scan & Fax |
| Print Technology | Digital LED Monochrome Laser |
| Print Speed | Up to 45 ppm (A4) |
| First Print Out | Approx. 5 seconds |
| Print Resolution | Up to 1200 × 1200 dpi |
| Automatic Duplex Printing | Yes |
| Automatic Duplex Scanning | Yes (50-sheet RADF) |
| Display | 7-inch Colour Touchscreen |
| Standard Paper Capacity | 530-sheet cassette + 100-sheet MP tray |
| Maximum Paper Capacity | 1,160 sheets |
| Connectivity | Gigabit Ethernet, Wireless LAN (802.11a/b/g/n), USB 2.0 |
| Memory | 512MB |
| Recommended Users | 1–25 Users |
| Warranty | 3-Year On-Site Warranty* |
| Condition | Brand New Genuine OKI |
Powerful Business Productivity
The ES5162DNW is engineered to keep demanding offices productive. Automatic duplex printing, copying, scanning and faxing help reduce paper consumption while increasing efficiency. The high-speed processor, large memory and robust Digital LED engine deliver consistently sharp text and reliable performance, even during heavy workloads.
Advanced Connectivity
Built-in Gigabit Ethernet and dual-band Wireless LAN allow the printer to integrate easily into virtually any office network. It also supports mobile and cloud printing technologies, making it simple for users to print from smartphones, tablets and laptops.
Designed to Lower Operating Costs
High-capacity toner cartridges, expandable paper capacity and OKI's long-life Digital LED technology help reduce operating costs and minimise user intervention, making the ES5162DNW an excellent choice for high-volume office environments.
Package Contents
- 1 × OKI ES5162DNW Executive Series Multifunction Printer
- Starter Toner Cartridge
- Image Drum
- Power Cable
- Telephone Cable
- Software & Documentation
Important Product Notice
Please Note: This model has been discontinued by OKI (End of Life). It remains an excellent choice for existing OKI environments, while stocks last. Genuine consumables and limited spare parts may still be available.
Frequently Asked Questions (FAQ)
Does the ES5162DNW support wireless printing?
Yes. Built-in Wireless LAN and Gigabit Ethernet allow flexible network deployment and mobile printing.
Can it automatically scan both sides of a document?
Yes. The 50-sheet Reverse Automatic Document Feeder supports automatic duplex scanning, copying and faxing.
Is duplex printing standard?
Yes. Automatic double-sided printing is included as standard.
Who is this printer best suited for?
The ES5162DNW is ideal for medium to large offices and workgroups that require fast monochrome printing, advanced document workflow and low running costs.
Is this model still being manufactured?
No. The ES5162DNW has reached End of Life (EOL). Existing users can continue using the printer normally, while genuine consumables remain available through authorised suppliers.

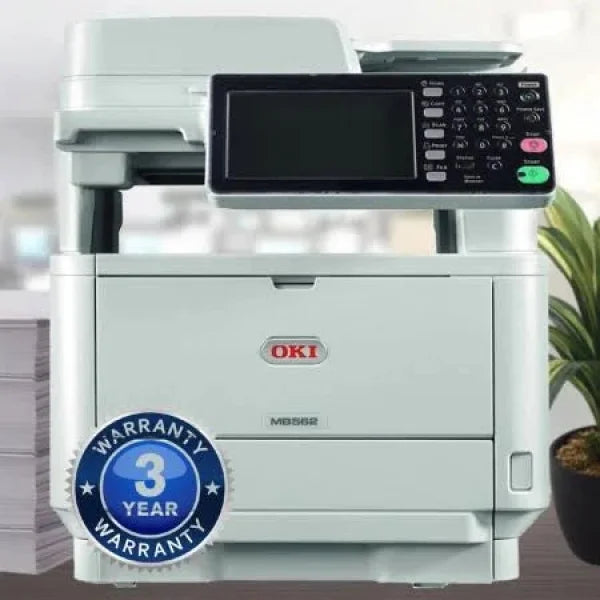

Fast and efficient, the MB562dnw mono multifunction printer combines automatic duplex printing, copying, scanning and fax functions with a high monthly duty cycle, extra high-capacity toners and large standard paper capacity, making it ideal for larger workgroups.
3 Year On-Site Warranty
ES5162 MFP. Fast and efficient, the ES5162 MFP combines automatic duplex printing, copying, scanning and fax functions with a high monthly duty cycle, extra high-capacity toners and large standard paper capacity, making it ideal for larger workgroups. Brochure/ Specification sheet.
| Type | Desktop |
|---|---|
| Scanning Method | Color CIS |
| Printing Method | Digital LED Electrophotographic Printing Method |
| Copy Density Adjustment | 7 levels (Manual) |
| Input Capacity | Tray 1 : 530 sheets (Optional)Tray 2 : 530 sheets Multi-purpose tray : 100 sheets |
| Scanning Resolution | Up to 600 x 600 dpi |
| Writing Resolution | Up to 600 x 600 dpi |
| Acceptable Original | Sheet |
| Original Size | Flatbed: A4, A5, A6, B5, Letter, Executive; ADF: A6, B5, A5, A4, Letter, Legal 13, Legal 13.5, Legal 14, Executive |
| Copy Paper Size | A6, B5, A5, A4, Letter, Legal 13, Legal 13.5, Legal 14, Executive |
| Copy Scaling | 25% to 400 % |
| Maximum Copies | 99 sheets |
| Copy Speed | A4 37 cpm |
| First Copy Out Time | Approx. 10.0 seconds |
| Warm-up Time | Approx. 60.0 seconds from power-on Approx. 17.0 seconds from power save |
| Power Source | Single phase 220 - 240 VAC ±0%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 950W / Ave. 660W Idle: 95W Power Save: 12.0W Deep Sleep: 1.9W Auto-Off: 0.5W |
| Memory (Std./Max.) | 512MB/512MB |
| Noise Level | Operating :Approx. 56 dBA Idle: < 30 dBA Power Save: < 7 dBA or Background level |
| Operating Environment | Operating: 10 - 32 °C, 20 - 80 %RH No condensation |
| Dimensions(WxDxH) | 427 x 478 x 496 mm |
| Weight(includes supplies) | Approx. 22.0 kg |
| In the Box | Image Drum x 1, Starter toner cartridge x 1, DVD-ROM, Telephone Cable, Ferrite Core, Power cable |
| Print Speed | A4 45 ppm |
|---|---|
| First Print Out Time | Approx. 5.0 seconds |
| Printing Resolution | 1200 x 1200 dpi |
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), Wireless LAN (IEEE802.11a/b/g/n) |
| Protocol | TCP/IP |
| Printer Language | PostScript 3 emulation, PCL 5e emulation, PCL 6 (XL) emulation |
| Supported OS (Click here for latest OS) | Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux |
| Memory (Std./Max.) | 512MB/512MB |
| Font | PCL emulation 87 scalable fonts, 4 bitmap fonts, PostScript emulation 136 fonts |
| Paper Type | Plain, Label, Envelope |
| Paper Size | A4, A5, B5, A6, Letter, Legal 13, Legal 14, Legal 13.5, Executive, Custom Size: Width 86-216 mm x Length 140-1320 mm |
| Paper Weight | Tray 1 : 80 gsm (Optional)Tray 2 : 80 gsm Multi-purpose tray : 80 gsm |
| Input Capacity | Tray 1 : 530 sheets (Optional)Tray 2 : 530 sheets Multi-purpose tray : 100 sheets |
| Output Capacity | Face Down : Max. 150 sheets |
Scan
| Scan Resolution | Max. 600 x 600 dpi |
|---|---|
| Scan Speed | Max. 10 ipm Color, 30 ipm mono |
| Interfaces | USB 2.0 (High Speed) Host, 1000BASE-T/100BASE-TX/10BASE-T, Wireless LAN (IEEE802.11a/b/g/n) |
| Supported Protocol | SMTP, FTP(S), HTTP(S), CIFS, TWAIN, WIA1.0, WIA2.0, ICA |
| Output Format | High compression PDF, Secure PDF, JPEG, TIFF, XPS |
| Driver | TWAIN, WIA1.0(Windows XP), WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later) |
Fax
| Applicable Line | PSTN, PBX |
|---|---|
| Interface | RJ-11 x 2 (Line, Tel) |
| Transmission Resolution | Normal: 8 dots/mm x 3.85 lines/mm Fine/Photo: 8 dots/mm x 7.7 lines/mm Extra Fine: 8 dots/mm x 15.4 lines/mm |
| Communication Speed | G3: 14.4kbps, Super G3: 33.6kbps |
| Encoding Method | MH, MR, MMR, JBIG |
| Communication Mode | ITU-T G3, Super G3 |
| Transmission Original Size | Max. Legal 14, Length 355 mm |
| Paper Size | Max. Legal 14, Min. Letter |
| Transmission Time | Approx. 3.0 sec. / page |
| Memory | Max. 200 pages (4MB) |
| Other Function | Duplex scanning, LDAP, Speed Dial(300 locations), PC Fax |
Document feeder
| Type | Reverse Automatic Document Feeder (RADF) |
|---|---|
| Original Size | A4, A5, A6, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive |
| Original Weight | 60 - 105 gsm |
| Loading Capacity | Max. 50 sheets |
BONUS 3-Year Warranty*
This printer includes a standard 12-month manufacturer's warranty. To receive the BONUS additional 2-year warranty (total 3 years), customers must register their printer on the official OKI Australia website within 30 days of purchase.
- ✔ Standard Warranty: 12 Months
- ✔ Register within 30 days to receive an additional 2 years
- ✔ Total Warranty after successful registration: 3 Years
www.oki.com.au
If the product is not registered within 30 days from the purchase date, the warranty will remain at the standard 12-month manufacturer's warranty.
