Description

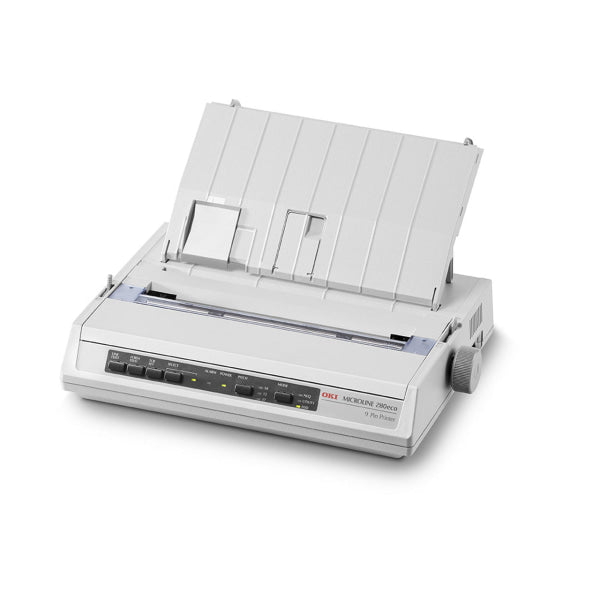

OKI MICROLINE ML280ECO - 9 PIN DOT MATRIX PRINTER SER PN:42590059
*DAMAGED BOX*
BRAND: OKI
OKI Microline ML280eco - 9 Pin Dot Matrix Printer SERIAL PORT PN:42590059 RRP $874.84
Compact Design
Eco-Friendly
Versatile Printing
Durable 9-pin print head
Centronics parallel & USB 2.0 interface
Up to 375 characters per second
3 milion character ribbon life
GENERAL
• 9 pins
• 4 multi-part forms (1 original and 3 copies)
SPEED & THROUGHPUT
• super speed draft (12cpi only) 375cps
• high speed draft (all cpi) 333cps
• utility (all cpi) 250cps
• near letter quality (all cpi) 62.5cps
• fastest print speed 375cps
FONT & PRINT FEATURES
• carriage width (10cpi) 80 columns
• max in compressed mode 160 columns
• Character pitch 10 / 12 / 15 / 17.1 / 20 pitch
• graphics resolution up to 240 x 216 dpi
• typeface & font utility, high speed draft, NLQ, barcodes
• typestyle – emphasized, enhanced, double width & italics
EMULATIONS & INTERFACES
• ep LX, IBM Graphics or Oki microline
• standard interfaces – centronics parallel, USB
• optional interfaces – serial RS 232C/RS 422/current loop
PAPER HANDLING
• continuous paper – 76.2 – 241.3mm
• first printable line (from top of page)
• cut sheet – 15mm
• continuous – 16.9mm
• standard autoload single sheet, platen pin feed, low tear-off,
• paper and detection
• optional roll paper stand, pull tractor feed, single bin sheet feeder
WARRANTY
• 12 months
Description
High reliability and compact dimensions make the ML280eco well-suited for front and back office applications including multi-part forms, logs and labels in commercial and industrial environments including manufacturing, retail and the service sector. A low-profile design is combined with low power usage and a long product life, with an impressive mean time between failures (MTBF) of 20,000 power-on hours.
OKI ML 280eco Features
Compact, 80 column dot matrix printer
Centronics parallel and USB 2.0 interfaces as standard for easy configuration
OKI Microline, EP FX and IBM Graphics printer emulations
Printer
Number of pins 9
Columns 80 (10cpi); 160 (maximum in compression mode)
Character pitch 10/12/15/17.1/20 pitch and proportional
Graphics resolution Up to 240 x 216dpi
Print speed Super Speed Draft: 375cps (12cpi); High Speed Draft: 333cps;
Utility: 250cps; Near Letter Quality: 62.5cps
Interface and Emulations
Interfaces Centronics parallel interface, USB 2.0
Emulations LX, IBM Graphics, Microline
Typeface & font SSD, HSD, Utility, NLQ, Barcodes
Typestyle Emphasised, Enhanced, Double Width, Double Height, Italics,
Underline, Compressed, Subscript, Superscript
Paper Handling
Continuous paper (Length) 76.2 – 241.3mm
First printable line
(from top of page)
Continuous (multi-parts): 16.9mm;
Cut sheet (single sheet): 15mm
Copy capability Up to 1 original + 3 copies (continuous paper only)
Paper feeding Autoload single sheet, Platen pin feed, Low tear-off,
Paper end detection
Optional paper feeding Pull tractor (Top position, rear/bottom feed), Roll paper stand
General Features
Input buffer 128Kbytes
Power supply Single phase 220 to 240VAC, +/- 10%,
frequency 50/60Hz
Power consumption Rolling ASCII, Utility: approx. 40W; Power Save: 2.4W Max
Noise level ISO7779: 51dB(A) (quiet mode); 58dB(A) (Utility mode)
Dimensions (HxWxD) 80 x 360 x 275mm
Weight 3.9kg approx
Print Head life 200 million characters (average) in 10cpi Utility mode at normal
25% duty cycle, 35% page density
Reliability MTBF: 20,000 hours (duty cycle 25%, page density 35%)
Product order numbers 42590034
Accessories (Order Numbers)
Roll Paper Stand 40108610
Pull Tractor YA4025-1715G002Primers
Consumables (Order Number)
Ribbon
(3 million characters) 44641501
