Description
11.7”x17” Large Format, Scan Size for Blueprints and Document
- 【Windows & Mac】- Support Windows 7/8/10/11, Mac OS X 10.12-14.x. Users can download the latest version of drivers from Plustek's website
- 【TWAIN & ICA Compliant】- Included TWAIN drivers (Windows)/ICA (MacOSX) guarantee compatibility with thousands of software applications and hardware systems
- 【One Key Operation】- With 4 preset buttons, each option can be set to address, file type, file name and other various options. Just touch a button to complete all the tasks

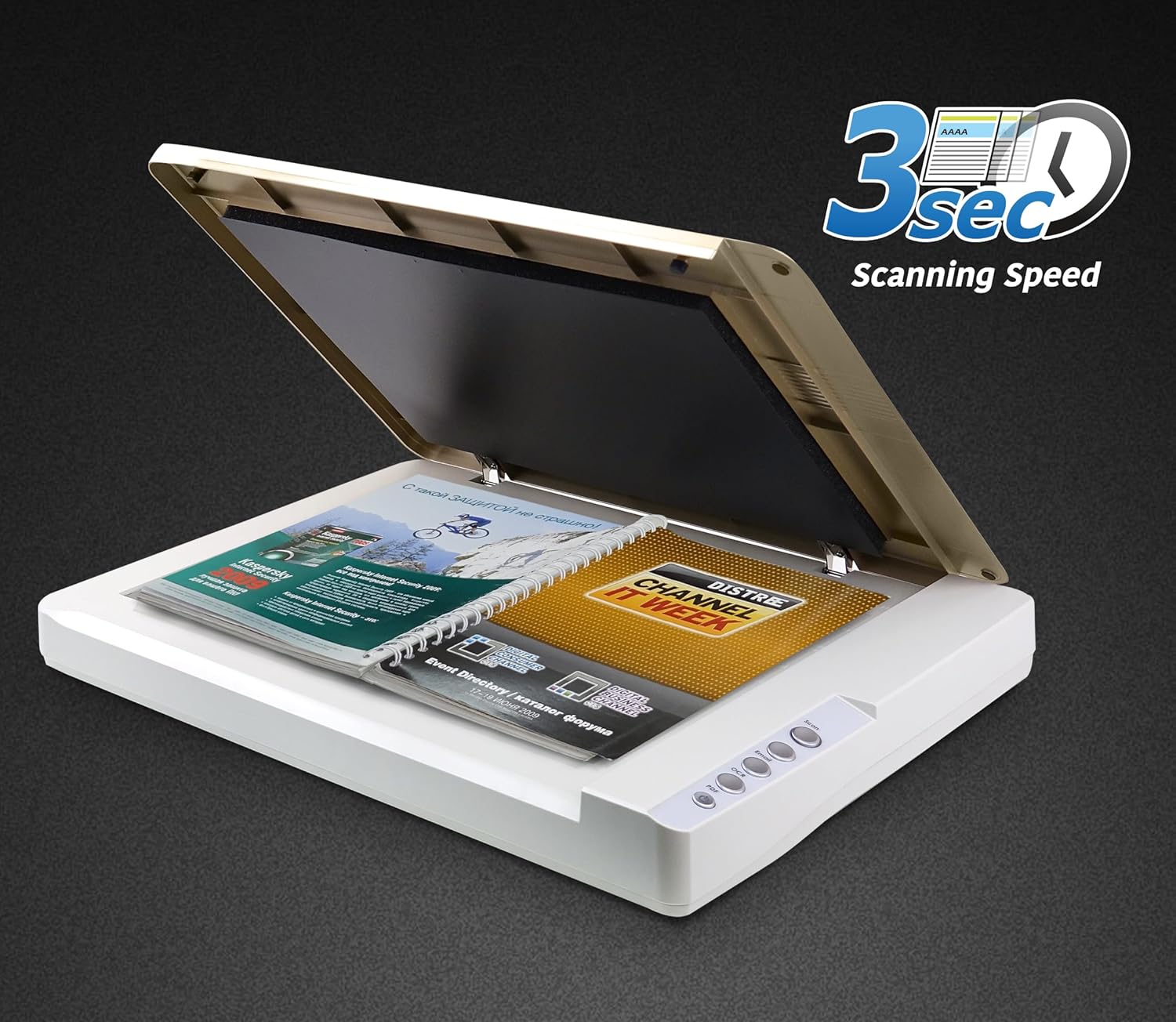

- 【FAST】- Scan tabloid size documents in just 3 seconds, 5 seconds for 300dpi@gray mode, color mode

| Image Sensor | CIS |
|---|---|
| Light Source | LED |
| Optical Resolution | 1200 dpi |
| Scan Modes | Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit output |
| Scanning Speed | 5 sec (Color Mode, 300dpi, A3) 3 sec (Grayscale / B&W Mode, 300dpi, A3) |

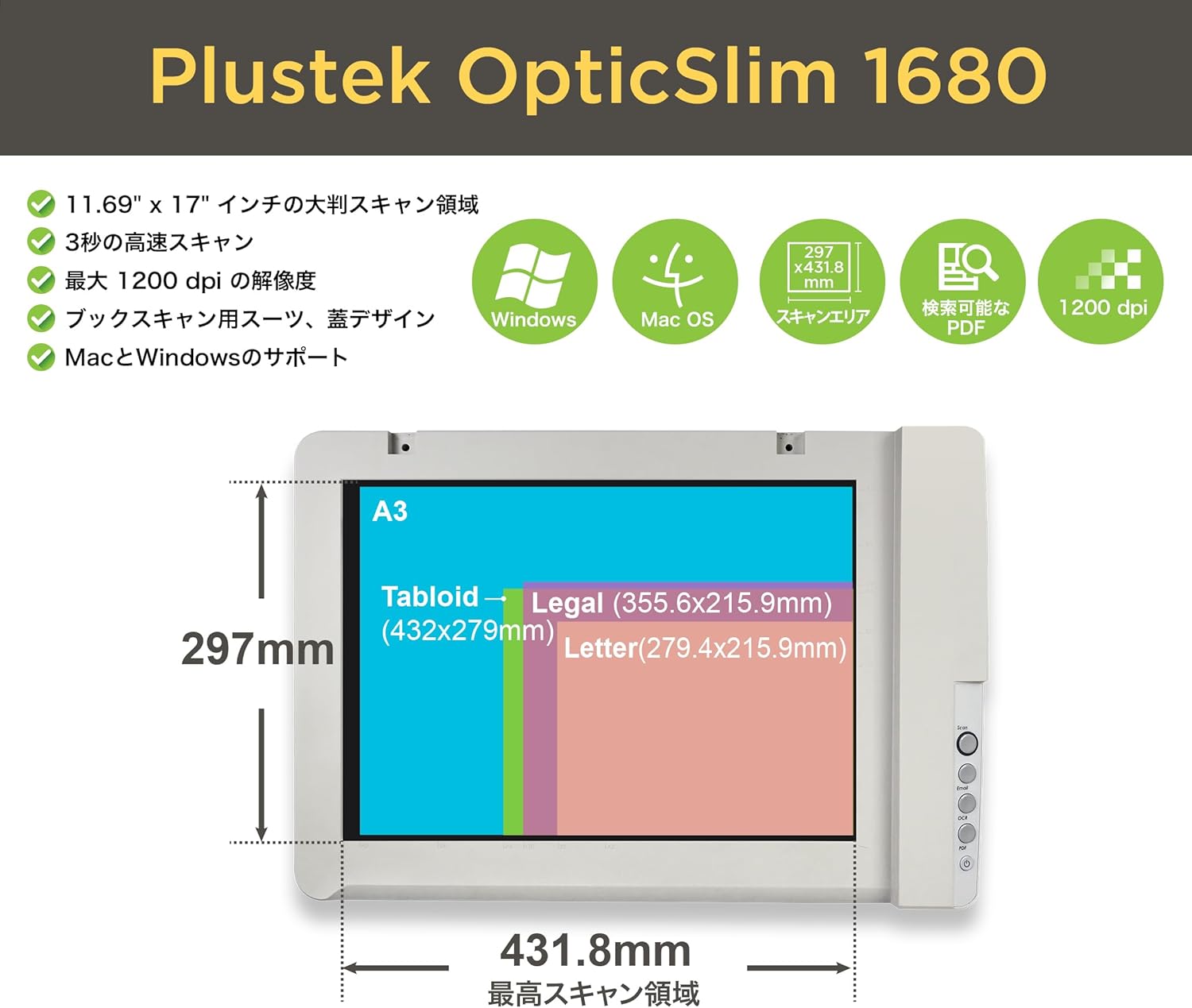

| Scanning Area (W x L) | Max. 297 x 431.8 mm (11.69" x 17") |
| Daily Duty Scan ( Sheets ) | 2,500 |
| Power Supply | AC Power: 24 V / 0.75 A |
| Interface | USB 2.0 |
| Net Weight | 4.32 Kgs (9.52 Lbs) |
| Dimensions (W x D x H) | 589 x 407 x 68 mm (23.18” x 16.02” x 2.67”) |
| Protocol | TWAIN Compliant |
| Operating System | Windows 7 / 8 / 10 / 11 macOS 10.10 / 10.11 / 10.12 / 10.13 / 10.14 / 10.15 / 11.x / 12.x / 13.x / 14.x / 15.x Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info. |
| Hardware Requirements | Windows and Mac 2.4 GHz CPU processor or higher[1][2][3] [1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher [2]Support Mac INTEL and M1 based processor [3]Compatibility is not available with PowerPC 4 GB RAM minimum (Recommended: 8 GB or more, A3 size@1200 dpi scanning, allocated 20 GB Virtual Memory at minimum) 6 GB of hard-disk space for program installation Display dimensions of 1024x768 or greater |
| Bundled Software | Plustek DocAction Plustek DocTWAIN Plustek MacAction Plustek ICA |
| Built-in OCR | Plustek DocOCR (For Mac) Plustek OCR (For Windows) (Powered by ABBYY® FineReader®) |
A large format scanner support Windows, Mac and TWAIN*

A Perfect Solution for Large Format Document Scanning

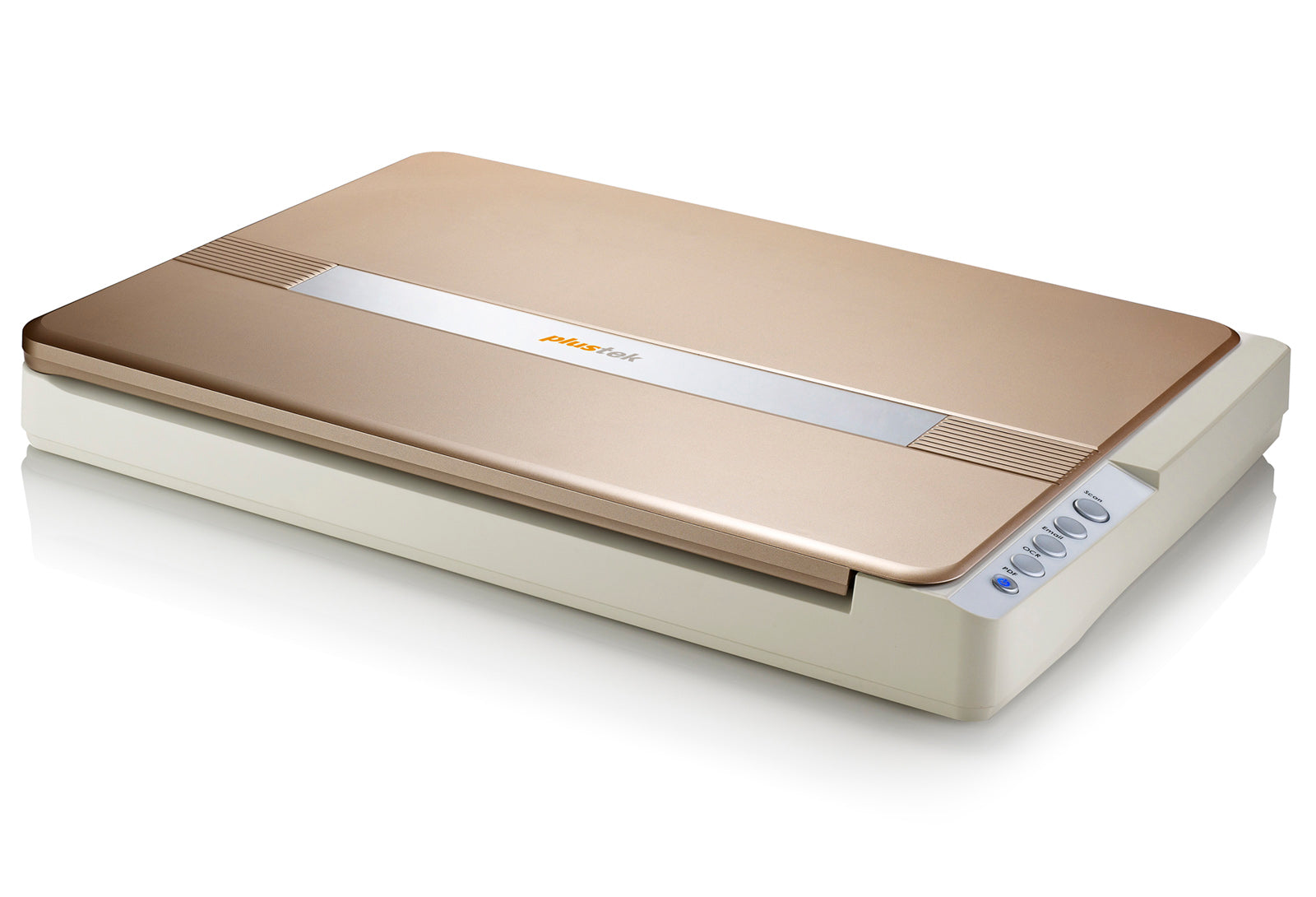

Plustek OpticSlim 1680 is an 11.69" x 17" tabloid sized scanner, designed for large format document scanning. 1680 can scan two pages spread book, two letter-sized pages (simultaneously), large-format magazines, legal-sized documents, scrapbooks and newspaper.
With the new LED light source design, the machine can scan immediately without the warming up step. The stable LED light source ensures high image quality for each scan. Scanning an A3-size only takes 8 seconds for Color/ Grayscale/ B&W Mode (300 dpi).

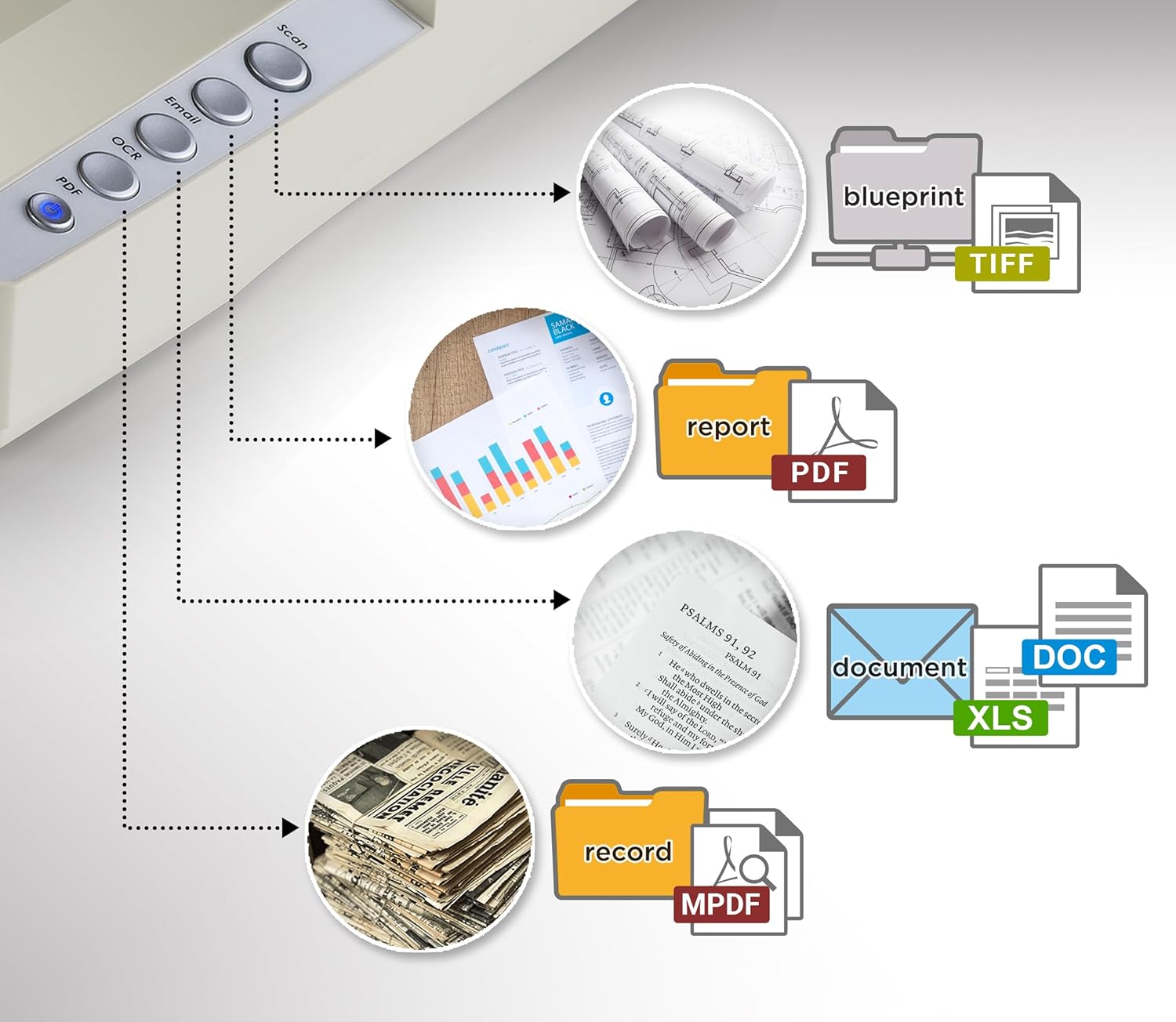

To highlight the ease of use feature,1180 has four one-touch scan buttons (Scan, OCR, PDF and Email) to simplify the whole scanning process and automate the most used functions.
Meet with variety conditions
Library and School
Suitable for the public area scanning such as the library or universities. The maximum scan area up to A3 size allows users to scan newspaper, magazine and other large-format books. The public users and student are able to do the research and digitalize documents in the library.
Architectural firms
The blueprints for constructions or design project are often required to be modified thousands times before the final versions. Over time, paper-based drawings aged and became damaged. You can preserve the original versions of your drawings by digitizing them. When your document is digital, you never have to worry about damages during handling.
Artists
Picture color is one of the most concerned issues for artists. The OpticSlim 1680 is suitable for sketches and crayon drawings. With superior digitized color algorithm, the color attributes can be truly reserved.
*If you want to scan art painting, such as watercolor, oil paints or photography, the OpticPro A320 series integrated CCD image sensor for better depth-of-field effect and image quality is your perfect choice.
Soho and Small Office
With a sleek and compact design, the OpticSlim 1680 takes less desktop and storage space than other A3-sized tabloid scanners. Therefore, OpticSlim 1180 is suitable for any SOHO workplace.
Intelligent Scan Correction Function

*If you want to scan art painting, such as watercolor, oil paints or photography, the OpticPro A320 series integrated CCD image sensor for better depth-of-field effect and image quality is your perfect choice.
(1) File size and resolution varies upon operating environment

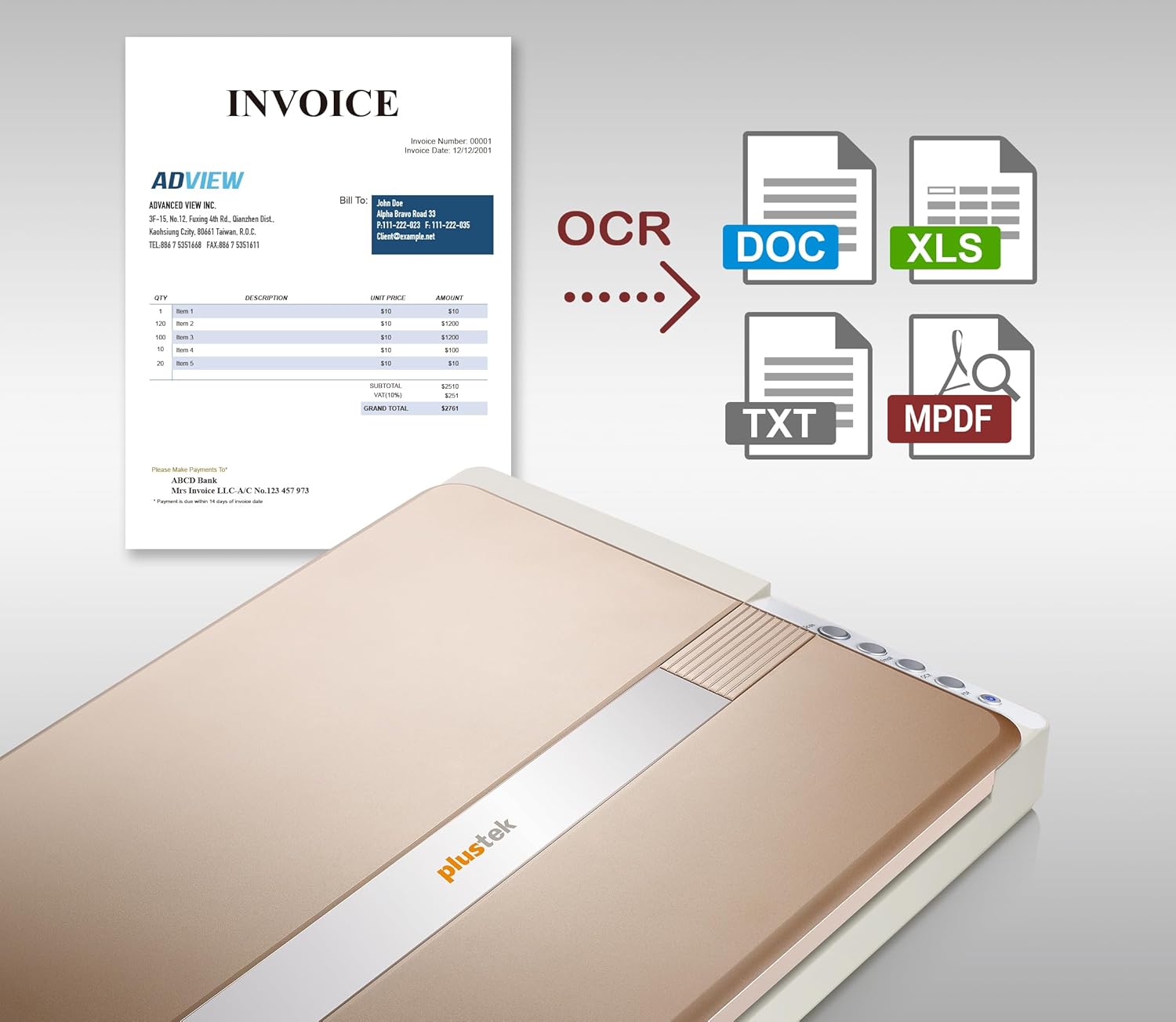

Convert Images to Searchable or Editable
The OpticSlim 1680 includes Plustek OCR function (powered by ABBYY) that help to convert scanned paper document such as receipts/invoice/delivery notes in to search PDF or editable files.

OpticSlim 1680 can help you do
Examination paper
In order to ensure the equity of exams and to preserve examination questions, there is a need to digitize examination papers into electronic files for future management.
Magazine Clippings
When you have a lot of interesting recipes or magazines you want to keep for future use, but also you do not want to bring a stack of paper at home, OpticSlim 1680 can help you digitalize all of your documents and keep it at your tablet or your laptop. Also, with the OCR feature, you can search for your file anytime.
Newspaper
When it comes to newspapers, the best way to preserve them is to digitize them. Newsprint is a very unstable and will deteriorate even with our best efforts to stop it. With OCR function, you can save image by searchable PDF format, then you can use keyword or sentence to search report.
Digitalize Your Book Collection
Having a wide range of book collection sometimes creates inconvenience for readers if they want to carry their collection around. With OpticSlim 1680, creating an eBook library is very simple. You can bring your entire collection with you; take them with you wherever you go—no worries about ruining your original copies, or lugging around heavy trade paperbacks.
Product Comparison between OS1180 and OS1680

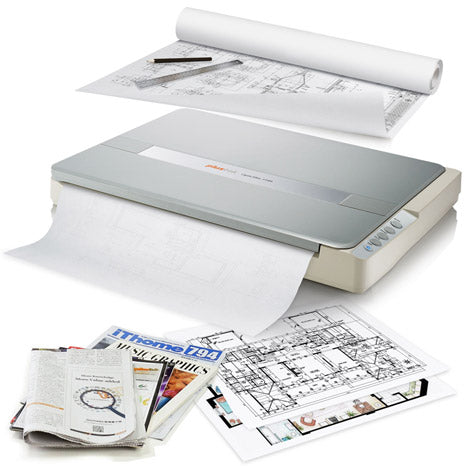

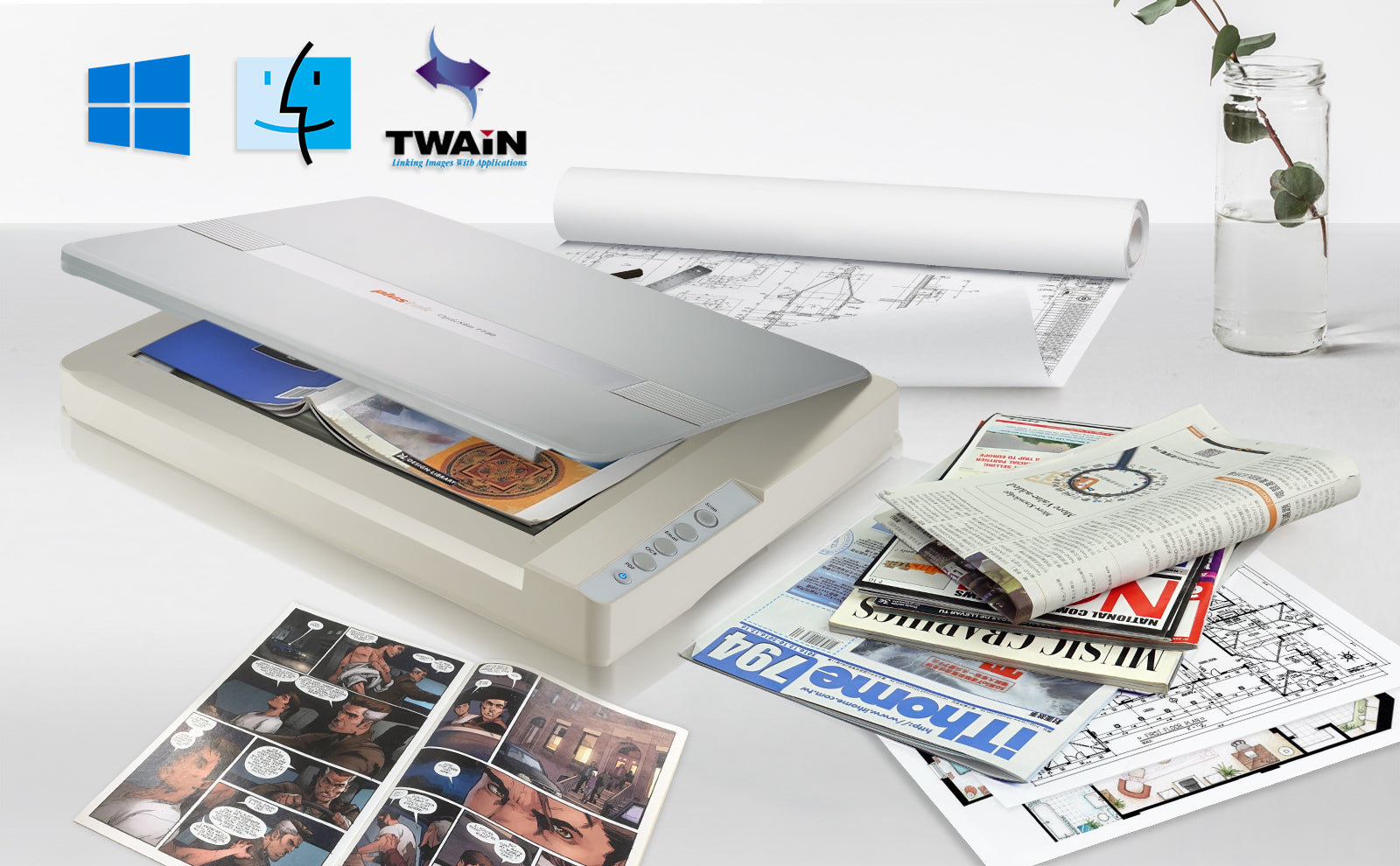

✅ Plustek OpticSlim 1180
-
Ideal for scanning large-format documents, artwork, and books.
-
Basic but effective features for document scanning.
-
Slim design, making it easy to fit in a small workspace.
✅ Plustek OpticSlim 1680
-
Designed for high-speed scanning of A3-size documents.
-
Suitable for digitizing books, magazines, and fragile documents.
-
Comes with advanced image enhancement features for higher-quality scans.
📊 Key Features Comparison
| Feature | Plustek OpticSlim 1180 | Plustek OpticSlim 1680 |
|---|---|---|
| Scanning Technology | CIS (Contact Image Sensor) | CIS (Contact Image Sensor) |
| Scan Size | Up to A3 (297 x 431.8 mm) | Up to A3 (297 x 431.8 mm) |
| Optical Resolution | 1200 dpi | 1200 dpi |
| Scan Speed | 9 seconds (Color @ 300 dpi) | 5 seconds (Color @ 300 dpi) |
| Color Depth | 48-bit input, 24-bit output | 48-bit input, 24-bit output |
| Gray Scale Depth | 16-bit input, 8-bit output | 16-bit input, 8-bit output |
| Daily Duty Cycle | 2,500 pages | 3,000 pages |
| Connectivity | USB 2.0 | USB 3.0 (backward compatible) |
| Software Included | ABBYY FineReader Sprint, Plustek DocAction | ABBYY FineReader Sprint, Plustek DocAction |
| Auto Scan Mode | No | Yes |
| Multi-Image Output | No | Yes |
| Compatible OS | Windows and Mac | Windows and Mac |
| Power Consumption | 18W | 24W |
| Dimensions | 589 x 407 x 67 mm | 623 x 378 x 88 mm |
| Weight | 4.5 kg | 4.3 kg |
📚 Applications
🎨 Plustek OpticSlim 1180 Best For:
-
Digitizing artwork, blueprints, and newspapers.
-
Basic document archiving in offices and schools.
-
Occasional A3-size document scanning.
📚 Plustek OpticSlim 1680 Best For:
-
High-volume document scanning and archiving.
-
Libraries, educational institutions, and law offices.
-
Scan-intensive environments requiring fast A3 scans.
⚡️ Why Choose Each Model?
✨ Why Choose the Plustek OpticSlim 1180?
-
Budget-friendly for basic A3 scanning.
-
Ideal for occasional use where high speed is not a priority.
-
Compact design, easy to store and handle.
🚀 Why Choose the Plustek OpticSlim 1680?
-
Faster scanning speed for higher efficiency.
-
USB 3.0 connectivity ensures faster data transfer.
-
Additional features such as Auto Scan Mode and Multi-Image Output.
💡 Summary:
-
OpticSlim 1180 is more suitable for casual or small-office use where speed is not the highest priority.
-
OpticSlim 1680 is ideal for professional environments where speed, higher duty cycles, and advanced scanning options are required.
If you’re looking for higher performance and faster scan speeds, the OpticSlim 1680 is the better option. However, if cost and basic A3 scanning are your main concerns, the OpticSlim 1180 offers good value.
