Description

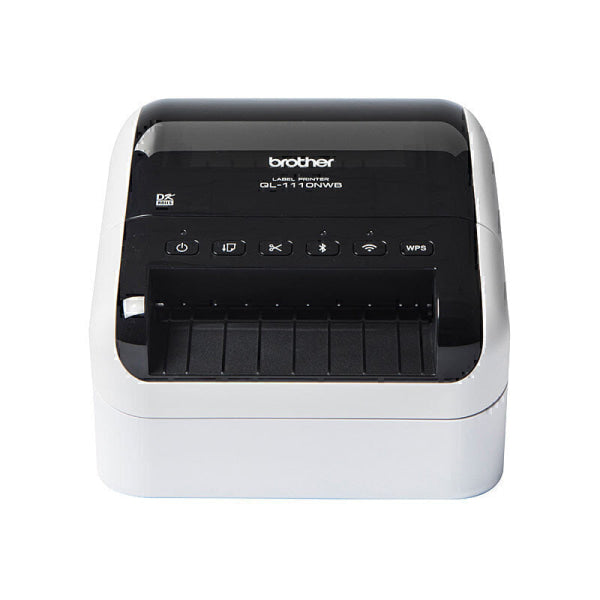

QL-1110NWB Professional Desktop Label Printer *Damaged Box*
OEM Code: QL-1110NWB
QL-1110NWB | Professional Label Printers
Introducing the Brother QL-1110NWB: a professional label printer that offers unrivalled versatility not only in the office, but also warehouse, postal, facilities management and other industries. For developers and systems integrators looking to incorporate label printing as part of their solutions, software development kits for Windows, iOS and Android offer an easy way to add support for the Brother QL-1110NWB. With versatile connectivity options including Wireless, Ethernet, Bluetooth and USB and the ability to print on labels up to 102mm wide, this easy to use wide format label printer ensures you’ll have anything you need labelled in no time.
Warranty:
Free local phone support for the life of the product.
3 Years Return To Base
Features:
AirPrint, USB, Bluetooth 2.1, Wired Network & Wi-Fi
Fast print speed - 69 labels per minute
Prints die cut labels or continuous rolls up to 102mm wide
Automatic label cutter
High-quality 300 DPI resolution printing ideal for logos and graphics
P-Touch Editor label design software with barcode print capability
Software Development Kits (SDKs) for Windows, iOS and Android
Specifications
General
FunctionsWired and Wireless Network ready labeller that prints 102mm labelsHardware TypeDesktopEngineDirect thermalStandard Memory7.8MB or 255 templates
Display
Display TypeLED lamp (3 colour - Green, Red, Orange)
Control Panel
Buttons6 buttons (Power, Feed, Cutter, Bluetooth, Wi-Fi, WPS)
Printer
EmulationRaster, ESC/P, PTouch template, ZPL/ZPLⅡ*Print SpeedMax. 110 mm / sec. or 69 standard address labels / min.Printer Resolution300 dpi / 1296 dotsDistributed PrintingYes
Labeller
Characters and SymbolsPC SelectFrames and BackgroundsPC SelectBarcodesYesBarCode NamesSoftware side(*1): CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), AztecCode**, PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), IMB
Machine side(*1): CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION, MSI, AztecMulti Line PrintPC SelectTape Length Setting25.4mm - 3000 mm (Win)Max Print Height101.6mmMax Print LengthUp to 3000mm long (Windows)Fonts LabellerBuiltin Bitmap fonts: Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Builtin Outline fonts: Helsinki, Brussels, Letter Gothic
All True Type Fonts installed in your computerTime and Date FeatureVia Computer
Software
Software IncludedWin: P-touch Editor 5.2, P-touch Address Book 1.3, Printer Setting Tool, P-touch Update Software, P-touch Editor Lite
Mac: P-touch Editor 5.2, Printer Setting Tool, P-touch Update SoftwareTemplate Transfer to Machine7.8MB or 255 templatesPtouch Editor LiteYes
Connectivity
InterfaceUSB Ver.2.0 (Full Speed) TypeB, USB Host (HID Class), Ethernet, Wireless, BluetoothWired Interface10/100 BASE-TX Wired EthernetWireless InterfaceIEEE 802.11b/g/nOperating SystemWindows 10, Windows 8/8.1, Windows 7, Server 2008, Server 2008R2, Server 2012, Server 2012 R2, Server 2016
Mac: OS X 10.11 or above
Linux deb, rpm (Only driver)
Mobile / Web Printing
Mobile Operating SystemYes IOS / AndroidiPrintLabelIOS / Android
Networking
Wireless InterfaceIEEE 802.11b/g/nWireless ModeIEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)Wireless SecuritySSID (32 chr), WEP, WPA-PSK/WPA2-PSK(TKIP/AES), LEAP(CKIP), EAP-FAST(TKIP/AES), PEAP(TKIP/AES), EAP-TTLS(TKIP/AES), EAP-TLS(TKIP/AES)
Power Supply
AC AdaptorInternal S/W Power Supply
Consumable
Roll Width12 - 103.6mmRoll TypeDK Rolls (DK Die-cut Labels / DK Continuous Length Tape)Roll SizeSee Roll TypeRoll CutterDurable Auto cutter (User unreplaceable)
Weight and Measures
Size170 x 222 x 151(WxDxH)mmWeight1735g (without DK roll)
Environment
Energy Star CompliantYesAuto Power OffYes Off/1/2/4/8/12 Hours
Others
Warranty3 Years Return To BaseCarton ContentsQL-1100NWB, CD-ROM (Software/Drivers/User‘s Guide, ESC/P tools), USB cable, DK-11247 Starter roll (41 labels), DK-22205 (62mm Continuous Length Paper Tape) Starter roll (8 m), AC Power cordFooter**Windows Only
