Description

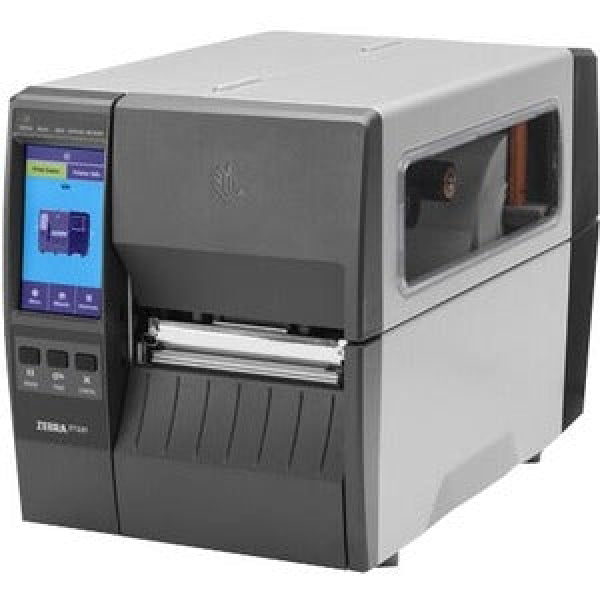

Zebra ZT231 4-Inch Industrial Direct Thermal Label Printer [ZT23143-D0P000FZ] is a professional 300dpi barcode and shipping label printer designed for warehouses, logistics operations, manufacturing facilities and busy distribution centres.
Featuring a durable industrial design, a 4.3-inch colour touchscreen and built-in USB, Serial and Ethernet connectivity, the Zebra ZT231 delivers sharp, reliable barcode labels at speeds of up to 203mm per second (8 inches per second). Its direct thermal printing technology eliminates the need for ink, toner or thermal transfer ribbons.
- Zebra ZT231 Industrial Barcode and Label Printer
- Exact Manufacturer Part Number: ZT23143-D0P000FZ
- Direct Thermal (DT) Printing – No Ribbon Required
- High-Resolution 300dpi Printhead
- Maximum Print Speed: 203mm/sec (8 ips)
- Maximum Print Width: 104mm (4.09")
- 4.3" Full-Colour Resistive Touchscreen
- USB 2.0, USB Host, RS-232 Serial and 10/100 Ethernet
- Bluetooth Low Energy (BTLE) for Supported Setup and Management Functions
- Durable Industrial Construction with Metal Frame
- Supports ZPL and ZPL II Printer Languages
- Standard Tear-Off Configuration
- Ideal for Warehouse, Logistics, Shipping and Barcode Labels
Technical Specifications
| Brand | Zebra |
| Model | ZT231 |
| MPN | ZT23143-D0P000FZ |
| Printer Category | Industrial Barcode Label Printer |
| Print Method | Direct Thermal |
| Print Resolution | 300dpi / 12 dots per mm |
| Maximum Print Speed | 203mm/sec (8 ips) |
| Maximum Print Width | 104mm / 4.09" |
| Maximum Print Length | 1854mm at 300dpi |
| Media Width | 19.4mm – 114mm |
| Maximum Roll Diameter | 203mm (8") with 76mm Core |
| Display | 4.3" Colour Resistive Touchscreen |
| Connectivity | USB 2.0, USB Host, RS-232 Serial, Ethernet 10/100 |
| Bluetooth | Bluetooth Low Energy (BTLE) |
| Built-in Wi-Fi | No – Optional Connectivity Upgrade |
| Printer Languages | ZPL / ZPL II |
| Memory | 256MB SDRAM / 256MB Flash |
| Media Sensors | Adjustable Transmissive and Reflective |
| Media Output | Tear-Off |
| Cutter / Peeler | Not Included |
| Printer Dimensions | 432 x 241 x 279mm (L x W x H) |
| Printer Weight | Approx. 9.1kg (Net) |
300dpi High-Resolution Barcode Printing
The Zebra ZT23143-D0P000FZ features a 300dpi printhead for producing crisp, detailed barcode labels. Compared with 203dpi models, the higher resolution is particularly useful for smaller text, compact barcodes and labels containing detailed information.
- Product identification and SKU labels
- High-density 1D and 2D barcodes
- QR codes and Data Matrix codes
- Shipping and dispatch labels
- Inventory and warehouse location labels
- Manufacturing and compliance labels
Direct Thermal Printing – No Ribbon Required
This ZT231 model uses Direct Thermal (DT) printing technology, producing labels by applying heat directly to compatible thermal-sensitive media.
- No ink or toner cartridges required
- No thermal transfer ribbon required
- Simple consumable replacement
- Ideal for shipping, dispatch and short-to-medium-life labels
- Suitable for high-throughput warehouse operations
Important: Direct thermal labels can fade when exposed to prolonged heat, sunlight or certain chemicals. For long-life asset labels or demanding environmental conditions, consider a Zebra Thermal Transfer printer instead.
Flexible Connectivity for Business Systems
The Zebra ZT231 includes multiple wired interfaces for integration with warehouse management systems, shipping software and existing barcode printing workflows.
- USB 2.0: Direct connection to a compatible computer or host.
- Ethernet 10/100: Share the printer across a wired business network.
- RS-232 Serial: Supports integration with compatible legacy equipment.
- USB Host: Connect supported peripherals and USB storage devices.
- Bluetooth Low Energy: Supports selected device setup and management functions.
Wi-Fi is not included as standard in this SKU. Bluetooth Low Energy should not be confused with conventional Bluetooth wireless label printing.
Industrial Design with Colour Touchscreen
Built for demanding business environments, the Zebra ZT231 combines a durable metal frame, convenient side-loading media path and a 4.3-inch colour touchscreen.
- Easy access to printer settings and status information
- Convenient label roll loading
- Clear media viewing window
- Support for Zebra Print DNA software tools
- Designed for light industrial and commercial applications
Direct Thermal vs Thermal Transfer
| Feature | ZT231 Direct Thermal | ZT231 Thermal Transfer |
|---|---|---|
| Printing Method | Heat-Sensitive Labels | Thermal Transfer Ribbon |
| Ribbon Required | No | Yes, for TT Printing |
| Best Applications | Shipping, Dispatch, Temporary Labels | Asset, Product and Long-Life Labels |
| Consumables | Direct Thermal Labels | Compatible Labels and Ribbons |
Related Zebra Label Printers
Customers requiring a different printing resolution, print method or media handling configuration may consider alternative Zebra ZT231 models.
- Zebra ZT231D 203dpi Direct Thermal Printer – Lower-resolution alternative for standard shipping labels.
- Zebra ZT231T 300dpi Thermal Transfer Printer – Suitable for more durable labels requiring a thermal transfer ribbon.
- Zebra ZT231T 203dpi Thermal Transfer Printer – Industrial barcode printer for ribbon-based label printing.
What's Included?
- 1 x Zebra ZT231 300dpi Direct Thermal Industrial Label Printer
- Manufacturer Part Number: ZT23143-D0P000FZ
- Applicable Power Cords
- Manufacturer Documentation
Note: Thermal label rolls, optional cutter, peeler and Wi-Fi accessories are not included unless specifically stated.
Frequently Asked Questions (FAQ)
Is the Zebra ZT231 a desktop or industrial printer?
The Zebra ZT231 is an industrial barcode label printer designed for warehouse, logistics and commercial applications.
Does this Zebra ZT231 print at 300dpi?
Yes. The ZT23143-D0P000FZ is the 300dpi Direct Thermal model.
How fast can the Zebra ZT231 300dpi print?
It supports printing at up to 203mm per second, equivalent to 8 inches per second.
Does this printer need a ribbon?
No. This is a Direct Thermal model and requires compatible heat-sensitive thermal labels rather than thermal transfer ribbons.
Does the ZT23143-D0P000FZ include Ethernet?
Yes. It includes built-in 10/100 Ethernet, USB 2.0, USB Host and RS-232 Serial interfaces.
Can I print wirelessly using Bluetooth?
The printer includes Bluetooth Low Energy for supported setup and management functions. Standard Bluetooth wireless label printing should not be assumed.
Does this printer include a cutter?
No. This configuration is supplied with standard tear-off media handling. A cutter is an optional accessory.
Last Updated: 10 October 2026
